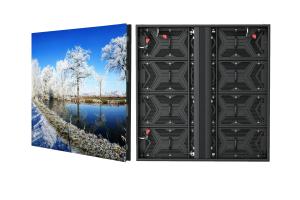

T Series Outdoor LED Billboard for Advertising Display with Weatherproof and High Brightness
Features of T Series Outdoor LED Billboard
1. High brightness and high contrast
Outdoor LED Billboard uses high-brightness LED lamp beads as a light source, with excellent brightness and contrast. Image and video content can be clearly displayed even in outdoor environments with direct sunlight to ensure good visual effects.
2. Energy conservation and environmental protection
Compared with traditional outdoor advertising media, Outdoor LED Billboard have lower energy consumption and longer life. The LED lamp bead itself has the characteristics of high efficiency, which can provide high brightness display effect at lower power. At the same time, it does not contain harmful substances and is friendly to the environment.
3. Versatility and flexibility
Outdoor LED Billboard are capable of displaying various forms of content, including text, pictures, animations and videos. Through the flexible control system and software, the content can be updated in real time and managed remotely to meet the display requirements of different scenarios and needs.
4. Durability and protection
Outdoor LED Billboard is usually waterproof, dust-proof, anti-corrosion design, with good durability and protective performance. The shell structure is made of high-strength materials, which can resist bad weather conditions, such as rain, wind and sand, etc., to ensure the normal operation of the display screen.
5. Large viewing Angle and wide color gamut
Outdoor LED Billboard has a wide range of viewing angles, and the audience can enjoy the excellent display effect from different angles. At the same time, it also has the characteristics of a wide color gamut, can present a more vivid, bright color, enhance the attractiveness of the picture and visual impact.
Specifications of T Series Outdoor LED Billboard
| Pixel pitch | P3.91 | P4.81 | P6.25 | P7.81 | P10.42 |
| SMD type | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Physical density(dots/sqm) | 65536 | 43264 | 25600 | 16384 | 9216 |
| Module resolution | 128*64 | 104*52 | 80*40 | 64*32 | 48*24 |
| Module dimension | 500*250 | 500*250 | 500*250 | 500*250 | 500*250 |
| Panel size (mm) | 1000*1000*83 | 1000*1000*83 | 1000*1000*83 | 1000*1000*83 | 1000*1000*83 |
| Panel resolution(W×H) | 256*256 | 208*208 | 160*160 | 128*128 | 96*96 |
| Module quantity(W×H) | 2*4 | 2*4 | 2*4 | 2*4 | 2*4 |
| Panel weight (kg) | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 |
| Maintenance mode | Front & Rear | Front & Rear | Front & Rear | Front & Rear | Front & Rear |
| Panel material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Brightness(Nits) | 6000 | 6000 | 6000 | 6000 | 6000 |
| Waterproof grade | IP65 | IP65 | IP65 | IP65 | IP65 |
Advantages of T Series Outdoor LED Billboard

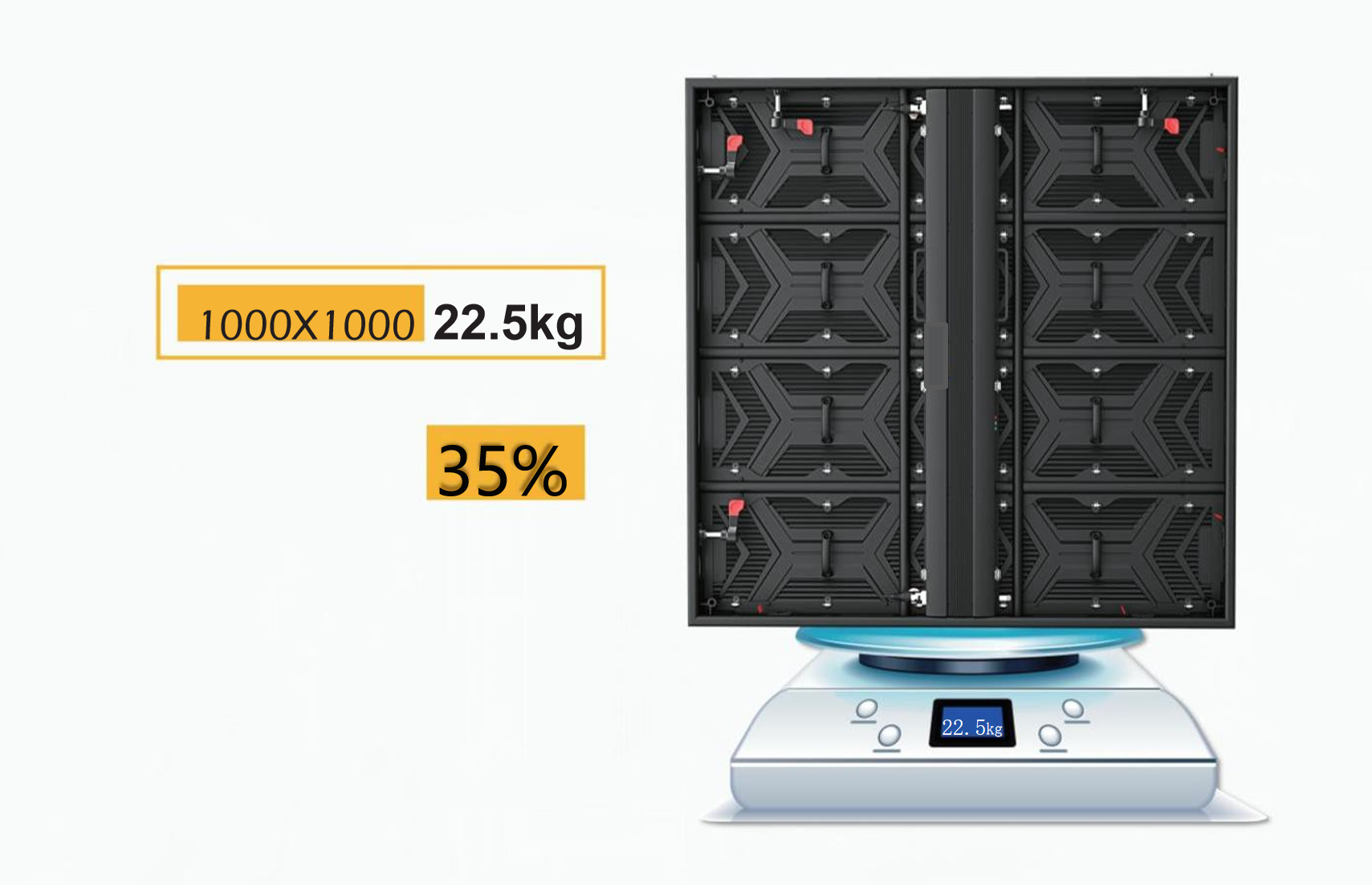

1. Lighter than standard steel cabinet
2. Use Hard Link to support hot-swap maintenance
3.High precision, Seamless splicing, Good Flatness
Application of T Series Outdoor LED Billboard
1. Malls/shopping centers
Outdoor LED Billboard is used for publicity and promotional activities in large shopping malls. The high brightness and bright color display can attract customers' attention, effectively advertise products and offers both day and night, and increase customers' stay in the mall.
2. Sports venues
During sports competitions, Outdoor LED Billboard are used to broadcast live events, advertisements and other information. Its high brightness and wide viewing Angle enable the display to clearly display content even in sunny environments and attract the eye of the audience.
3. Public transportation
Bus stations, subway stations and other places with a large flow of people are also important application areas of Outdoor LED Billboard. The display screens installed in these places can play various types of advertising, announcements, weather forecasts and other information to provide practical services and entertainment for waiting passengers.
